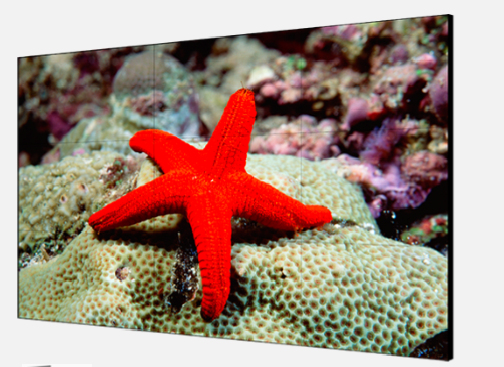

Màn hình ghép 55-inch 0.88mm LCD Display Unit

Liên hệ

Display Screen Size55 inch Active Display Area1209.63 (H) mm × 680.34 (V) mm BacklightDirect-lit LED backlight Pixel Pitch0.63 mm Physical Seam0.88 mm Bezel Width0.44 mm (top/left), 0.44 mm (bottom/right) Resolution1920 × 1080@60 Hz (downward compatible) Brightness500 cd/m² Viewing AngleHorizontal 178°, vertical 178° Color Depth10 bit, 1.07 B Contrast Ratio1100:1 Response Time8 ms Color...

Mô tả
Thông số chi tiết
Đánh giá

Display
Screen Size55 inch
Active Display Area1209.63 (H) mm × 680.34 (V) mm
BacklightDirect-lit LED backlight
Pixel Pitch0.63 mm
Physical Seam0.88 mm
Bezel Width0.44 mm (top/left), 0.44 mm (bottom/right)
Resolution1920 × 1080@60 Hz (downward compatible)
Brightness500 cd/m²
Viewing AngleHorizontal 178°, vertical 178°
Color Depth10 bit, 1.07 B
Contrast Ratio1100:1
Response Time8 ms
Color Gamut72% NTSC
Surface TreatmentHaze 28%, 2H

Interface
Video & Audio InputVGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1
Video & Audio OutputHDMI × 1
Control InterfaceRS232 IN × 1, RS232 OUT × 1

Power
Power Supply100-240 VAC, 50/60 Hz
Power Consumption≤ 192 W
Standby Consumption≤ 0.5 W

Working Environment
Working Temperature0°C to 40°C (32°F to 104°F)
Working Humidity10% to 90% RH (non-condensing)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Storage Humidity10% to 90% RH (non-condensing)

General
Casing MaterialSECC
VESA600 (H) mm × 400 (V) mm
Product Dimension (W × H × D)1210.81 mm × 681.76 mm × 68.9 mm (47.67'' × 26.84'' × 2.71'')
Package Dimension (W × H × D)
Carton with two displays: 1404 mm × 910 mm × 464 mm (55.28'' × 35.83'' × 18.27'')

Carton with a single display: 1404 mm × 910 mm × 464 mm (55.28'' × 35.83'' × 18.27'')
Net Weight23.9 ± 0.5 kg (52.69 ± 1.1 lb) for single display
Gross Weight
Carton with two displays: 60.18 ± 0.5 kg (132.67 ± 1.1 lb)

Carton with a single display: 36.24 ± 0.5 kg (79.9 ± 1.1 lb)
Packing ListLCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1
